BIOS Bio-Dimming™ Module
Circadian Control
Made Simple
The BIOS Bio-Dimming™ Module enables both spectrum and intensity control using a standard single-channel dimming circuit—no need for complex multi-channel systems. This means you can bring the circadian benefits of SkyBlue™ Technology into your project even with conventional 0-10V, ELV, DMX, or wireless dimming infrastructure.
During the day, BIOS LEDs deliver a strong circadian stimulus
By targeting the 490nm wavelength─the precise spectral region our bodies recognize as “sky blue” to help regulate alertness, mood and biological rhythms.
But at night, especially in 24-hour environments, it’s essential to reduce this blue light exposure to support healthy melatonin production and natural sleep-wake cycles.
How it Works
By simply dimming the lights, the BIOS Bio-Dimming™ Module automatically reduces SkyBlue™ output, transitioning lighting from an energizing daytime mode to a melatonin-friendly night mode—all through a single control channel.
Easy Integration

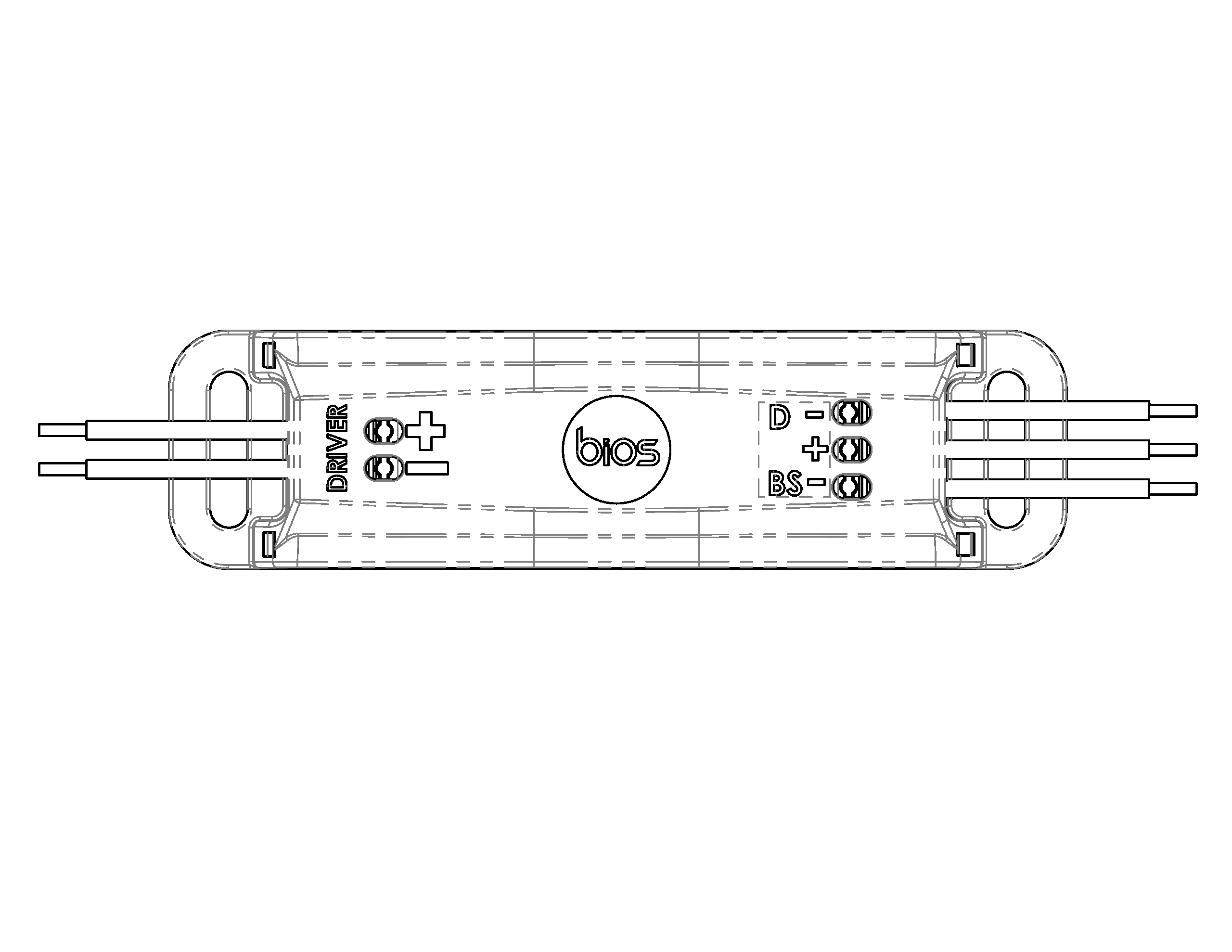

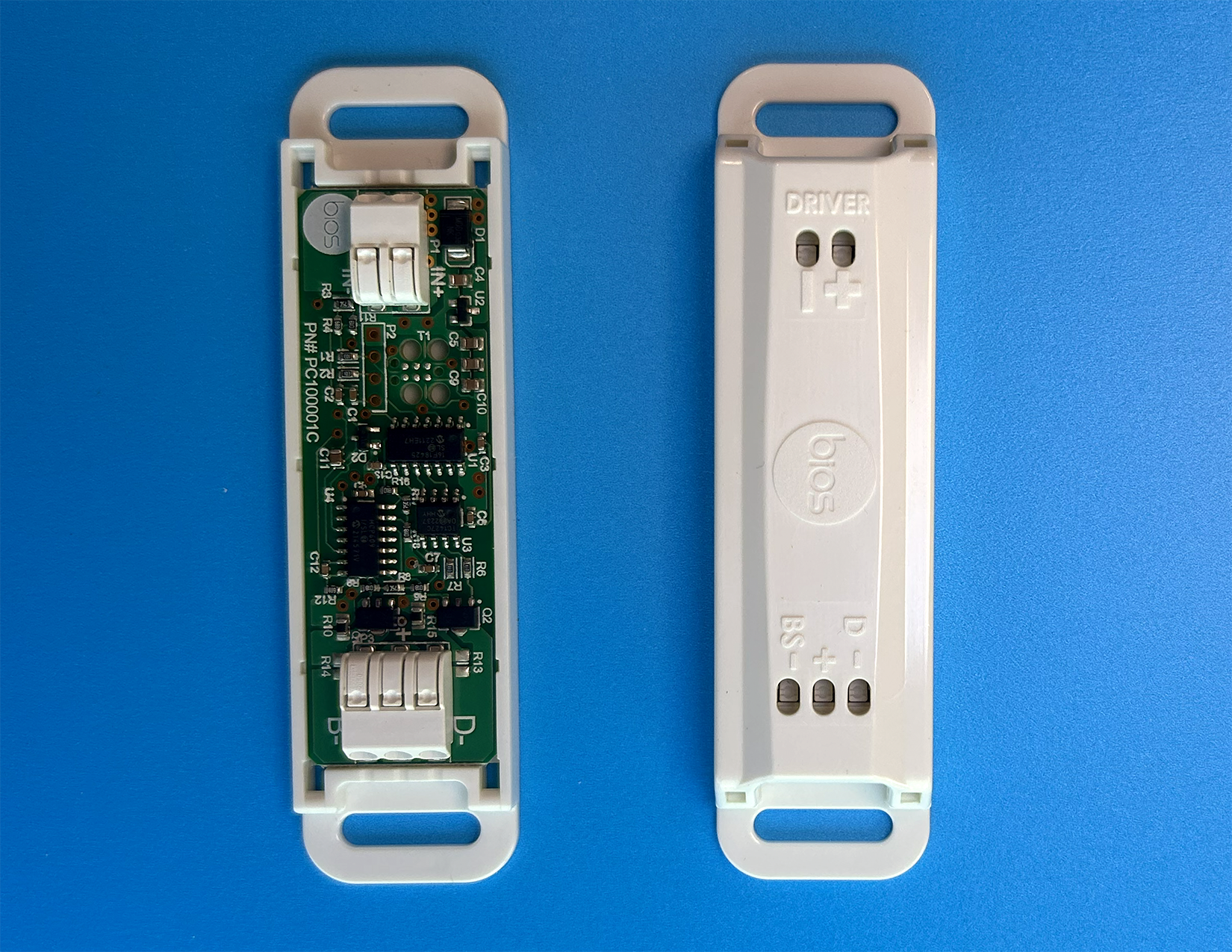

The Bio-Dimming™ Module integrates easily into your fixture by wiring directly to a constant current (CC) LED driver, and works seamlessly with BIOS dynamic biological light engines interfacing with any standard dimming protocol (0-10V, ELV, DMX, Wireless).
Resources
For spec sheets, wiring diagrams, and setup guides, visit our SkyBlue™ Alliance Portal and get everything you need to implement a fully tunable circadian lighting system using standard controls.
Bio-Dimming™ Module for SkyBlue™ Static Circadian Systems
Dimmer Level
100%
CCT
Initial CCT:
SkyBlue™ 3000K
SkyBlue™ 3500K
SkyBlue™ 4000K
SkyBlue™ LED %
100%
Melanopic Ratio
(m-DER)
0.63 / 0.72 / 0.81
Total Light Output
100%
Dimmer Level
99-0%
CCT
Initial CCT:
SkyBlue™ 3000K
SkyBlue™ 3500K
SkyBlue™ 4000K
SkyBlue™ LED %
100%
Melanopic Ratio
(m-DER)
0.63 / 0.72 / 0.81
Total Light Output
Linear Dimming to 0%
Dimmer Level
Correlated Color Temperature (CCT)
SkyBlue™ LED %
Melanopic Ratio
(m-DER)
Total Light Output
100%
Initial CCT: SkyBlue™ 3000K / 3500K / 4000K
100%
0.63 / 0.72 / 0.81
100%
99-0%
Initial CCT: SkyBlue™ 3000K / 3500K / 4000K
100%
0.63 / 0.72 / 0.81
Linear Dimming to 0%
Bio-Dimming™ Module for SkyBlue™ Tunable Circadian Systems
Dimmer Level
Correlated Color Temperature (CCT)
SkyBlue™ LED %
Melanopic Ratio
(m-DER)
Total Light Output
100%
Initial CCT: SkyBlue™ 3000K / 3500K / 4000K
100%
0.63 / 0.72 / 0.81
100%
99-81%
Gradient shift down to Evening 2700K
100-0%
0.63 / 0.72 / 0.81
to <0.42
100%
80%
Evening 2700K
0%
<0.42
100%
79-0%
Evening 2700K
0%
<0.42
Linear Dimming to 0%
Dimmer Level
100%
CCT
Initial CCT:
SkyBlue™ 3000K
SkyBlue™ 3500K
SkyBlue™ 4000K
SkyBlue™ LED %
100%
Melanopic Ratio
(m-DER)
0.63 / 0.72 / 0.81
Total Light Output
100%
Dimmer Level
99-81%
CCT
Gradient shift down to Evening 2700K
SkyBlue™ LED %
100-0%
Melanopic Ratio
(m-DER)
0.63 / 0.72 / 0.81
to <0.42
Total Light Output
100%
Dimmer Level
80%
CCT
Evening 2700K
SkyBlue™ LED %
0%
Melanopic Ratio
(m-DER)
<0.42
Total Light Output
100%
Dimmer Level
79-0%
CCT
Evening 2700K
SkyBlue™ LED %
0%
Melanopic Ratio
(m-DER)
<0.42
Total Light Output
Linear Dimming to 0%
Bio-Dimming™ Module for SkyBlue™ Dynamic Circadian Systems
Dimmer Level
Correlated Color Temperature (CCT)
SkyBlue™ LED %
Melanopic Ratio
(m-DER)
Total Light Output
100%
Initial CCT: SkyBlue™ 3000K / 3500K / 4000K
100%
0.63 / 0.72 / 0.81
100%
99-81%
Gradient shift down
SkyBlue™ 3000K to Evening 2700K
SkyBlue™ 3500K to Evening 3000K
SkyBlue™ 4000K to Evening 3500K
100-0%
0.63 to <0.42
0.72 to <0.44
0.81 to <0.72
100%
80%
Evening 2700K
SkyBlue™ 3000K
SkyBlue™ 3500K
0%
<0.42
<0.44
<0.72
100%
79-0%
Evening 2700K
SkyBlue™ 3000K
SkyBlue™ 3500K
0%
<0.42
<0.44
<0.72
Linear Dimming to 0%
Dimmer Level
100%
CCT
Initial CCT:
SkyBlue™ 3000K
SkyBlue™ 3500K
SkyBlue™ 4000K
SkyBlue™ LED %
100%
Melanopic Ratio
(m-DER)
0.63 / 0.72 / 0.81
Total Light Output
100%
Dimmer Level
99-81%
CCT
Gradient shift down:
SkyBlue™ 3000K to Evening 2700K
SkyBlue™ 3500K to 3000K
SkyBlue™ 4000K to 3500K
SkyBlue™ LED %
100-0%
Melanopic Ratio
(m-DER)
0.63 to <0.42
0.72 to <0.44
0.81 to < 0.72
Total Light Output
100%
Dimmer Level
80%
CCT
Evening 2700K
SkyBlue™ 3000K
SkyBlue™ 3500K
SkyBlue™ LED %
0%
Melanopic Ratio
(m-DER)
<0.42
<0.44
<0.72
Total Light Output
100%
Dimmer Level
79-0%
CCT
Evening 2700K
SkyBlue™ 3000K
SkyBlue™ 3500K
SkyBlue™ LED %
0%
Melanopic Ratio
(m-DER)
<0.42
<0.44
<0.72
Total Light Output
Linear Dimming to 0%
